1. (4 points) Draw representations of the following graphs.

(a) K5
(b) K4;2

2. (4 points) Define the following terms.

(a) degree of a vertex
(b) isomorphism of graphs G1 = (V1; E1) and G2 = (V2; E2)

3. (4 points) Given that a planar graph has 16 regions, one vertex of degree 6 and all other vertices have degree 4, how many vertices are there?

4. (8 points) Is the following graph planar? Why or why not?

5. True or False. (12 points) Give a brief reason, correction, or counterexample along with your answer.

(a) If two graphs G and H have the same number of edges and vertices, then the graphs are isomorphic.

True False

(b) The number of people at a party who know an odd number of other people must be even.

True False

(c) If a graph is not connected then its complement is connected.

True False

(d) Any planar graph can be (vertex) colored with at most 4 colors but this page is too small to contain the proof.

True False

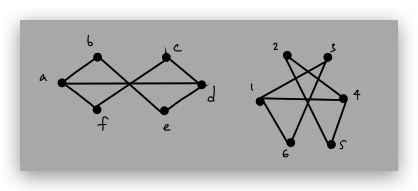

6. (8 points) Are the following graphs isomorphic to one another? Why or why not?

7. (10 points) Let Km;n;p denote a complete tripartite graph, i.e., a graph whose vertices can be partitioned into three disjoint sets of size m; n; and p, where every vertex in each set has an edge to each and every vertex in the other sets, but not to any in its own set. Determine the values of m; n; and p such that Km;n;p contains an Euler cycle.
